• One of India's most modern motor factories
• incorporating extensive CAD
• facilities with over 50 years experience in the design and application of induction motors, enables MARATHON Electric to offer the benefits of proven solutions

Specification

• MARATHON Electric has over 2500 MW installed world-wide

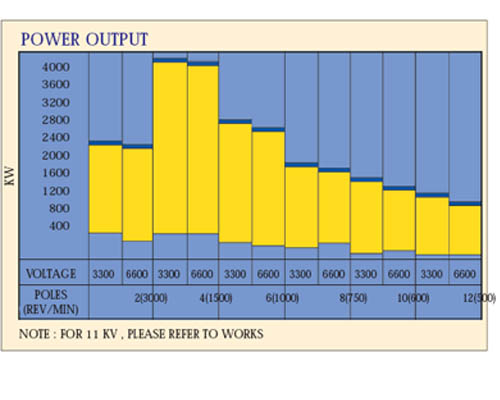

• Upto 4000 KW range capability
• All speeds available
• Highest available efficiency - rapid pay-back
• High Power Factor - Low Power Cost
• 20 years' expected design life at 1000 starts per year
• Resivac VPI Insulation System for total winding reliability
• Highest quality - lowest maintenance costs
• Low Noise Level - Better performance than IS:12065
• Low vibration level - conforms to IS:12075
• IP 55 enclosure protection as standard on enclosed machines
• Factory fixed Air Gap
• Compliance with National and International Standards
• Built to type N requirements
• Upto 11 kV, 50 or 60 Hz. supply
• Low Starting Current design available
• Variable speed drive compatibility
• Horizontal mounting
• Rolling or Plain Bearings
• Environmentally friendly motors to meet all drives
• Type "e" version available on request
• Slipring version available
