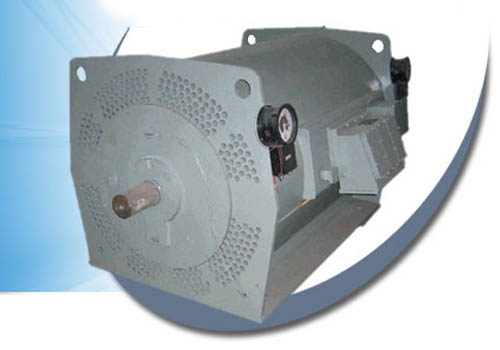

TETV
- Fabricated Robust Steel construction for frames
- Uniform internal cooling circuit
- Axial Cooling for smaller ratings
- Basic mounting dimensions as per IS
- Class 'F' insulation system
- Rotors are dynamically balanced
- Environmentally friendly motors to meet all Drives
- Fault tested Phase Segregated Terminal box
- RTD, BTD, Dial type Temperature indicator available
- Separate Terminal Box available
- Magnetic Slot Wedge to improve Efficiency
- Provision for special Epoxy paint system
Specification
- Range : Upto 3000 KW
- Poles : Upto 14 Pole
- Voltage : Upto 11000 Volt
- Frame : 450 - 1000
- Insulation : C1-F with rise limit C1-B
- Rotor : Squirrel Cage**
- Mounting : Horizontal & Vertical
- Rotation : Uni-direction/Bi-direction
- Cooling : IC 0151
- Bearing : Grease lubricated anti-friction Rolling Element & oil lubcricated sleeve bearings
- Degree of Protection : IP 54, IP 55
